200kg Rubber Suction Vacuum Glass Lifter Robot

Saga First Vacuum lifter series are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble.

Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.

Features：

Dual Vacuum System. One for normal operation and one as spare system.

USA Curtis control system,DC24V reliable actuators for lifting, extension and tipping. efficient and precise.

Japan Panasonic and Taiwan Airtac Self-contained air system, and no external air source is required.

High quality vacuum pump,heavy duty driving wheel, hydraulic pump,as well as maintenance-free battery.

 Integrated with pressure auto maintaining system, even if power fails, pressure remains.

Independent Air Inlets. Each suction cup can be disabled individually if not all are needed.

Self propelling,Strong power, steady lifting and lowering

fine adjustment of position without driving the machine.(See above video)

Integrated control system secures quick,automatic positioning vertically,horizontally by a single push on a button.

Attractive price, staff saving, strong improvement of working environment.

OEM & ODM service,according to different materials size and weight.Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.

Standard configurations:

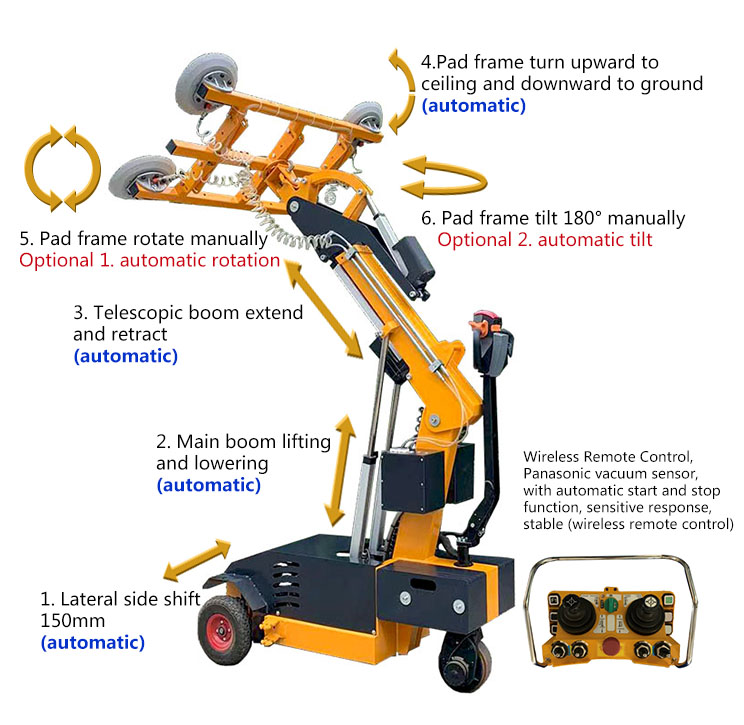

4 kinds of Automatic movement+2 kinds of manual movement

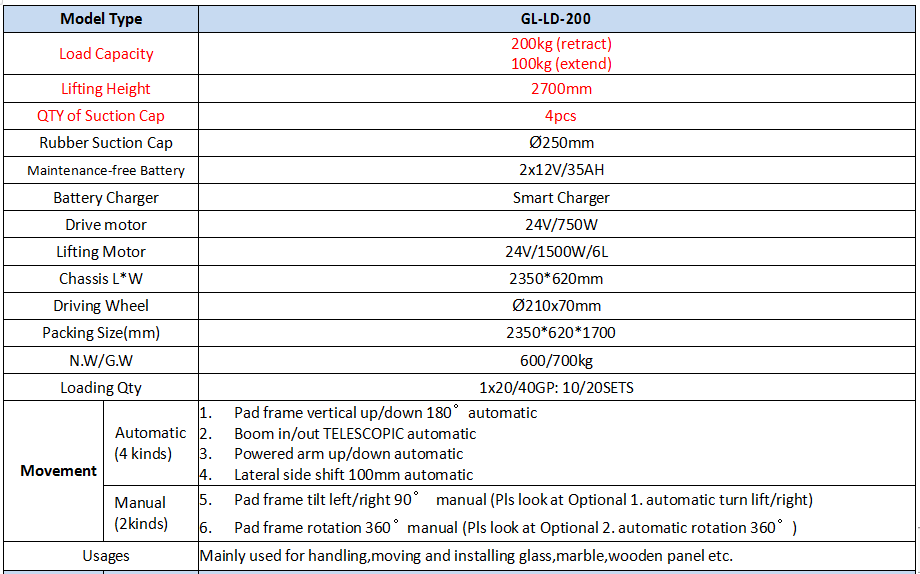

Data Sheet

Movements

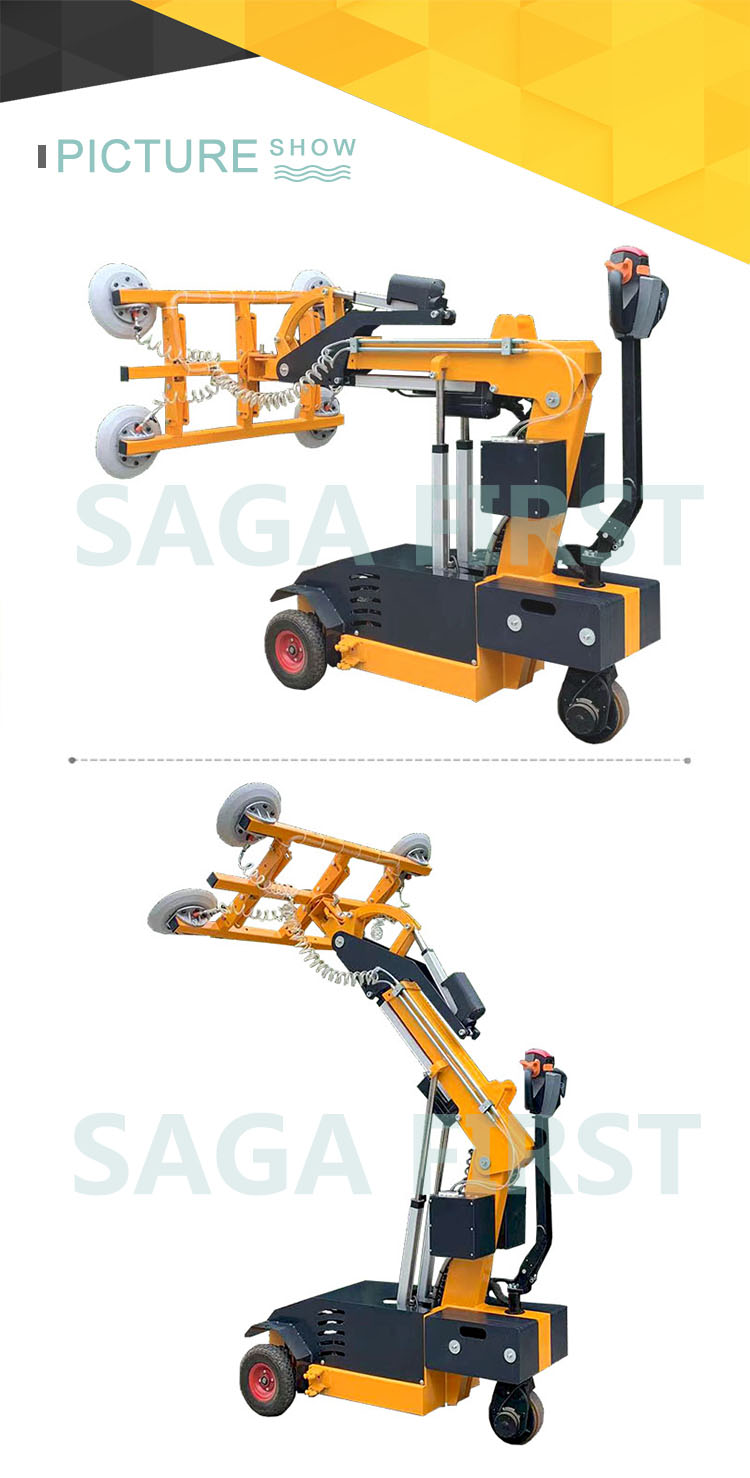

Product Show
