Vacuum Glass Lifter

GL-LD Series Sponge Suction Sup Vacuum Lifter Robot

GL-LD series can reach a height of 3.65m,even can be customized to 5m.Its boom arm is very flexible with 360° rotation and 180° tilt frame pad.So it's widely used for handle,moving and installing glass,windows,doors and other heavy panels etc. Load capacity:300kg,400kg,500kg,600kg,800kg.

Description
Inquiry

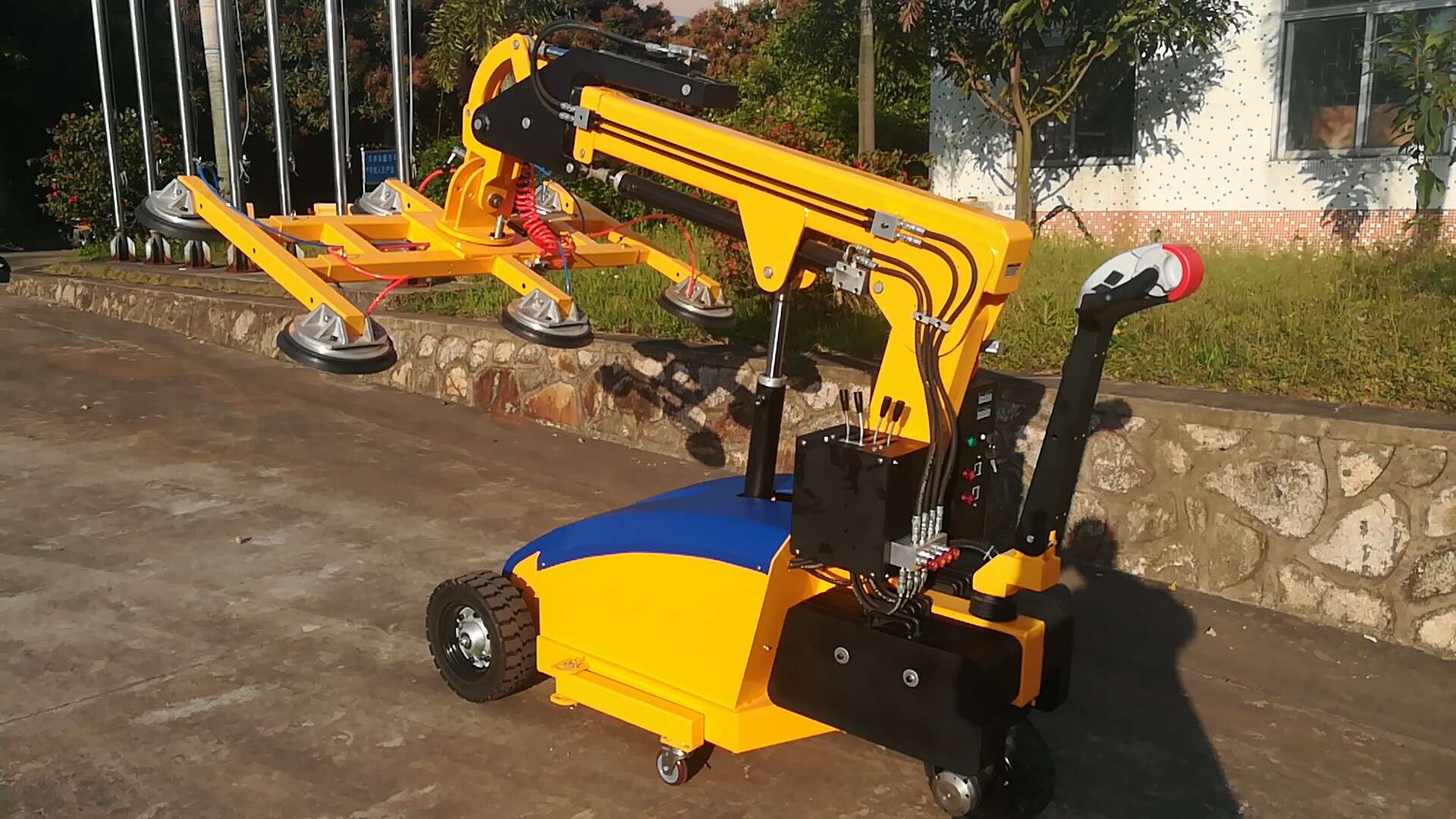

GL-LD Series Vacuum Sponge Suction Cups Lifter Robot

Description

Saga First Vacuum lifter series are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting,

moving and rotating with vacuum suction caps and powerful drive system.

Features & Advantages

A. Dual Vacuum System. One for normal operation and one as spare system.

B. USA Curtis control system,DC24V reliable actuators for lifting, extension and tipping. efficient and precise.

C. Japan Panasonic and Taiwan Airtac Self-contained air system, and no external air source is required.

D. High quality vacuum pump,heavy duty driving wheel, hydraulic pump,as well as maintenance-free battery.

E. Integrated with pressure auto maintaining system, even if power fails, pressure remains.

F. Independent Air Inlets. Each suction cup can be disabled individually if not all are needed.

G. Self propelling,Strong power, steady lifting and lowering.

H. fine adjustment of position without driving the machine.(See above video)

I. Integrated control system secures quick,automatic positioning vertically,horizontally by a single push on a button.

J. Attractive price, staff saving, strong improvement of working environment.

Data-Sheet

Model Type		GL-LD-200	GL-LD-300	GL-LD-400	GL-LD-500	GL-LD-600	GL-LD-800
Load Capacity		200kg (retract) 100kg (extend)	300kg (retract) 150kg (extend)	400kg (retract) 200kg (extend)	500kg (retract) 250kg (extend)	600kg (retract) 300kg (extend)	800kg (retract) 400kg (extend)
Lifting Height		2700mm	3500mm	3500mm	3700mm	3700mm	4500mm
QTY of Suction Cap		4pcs	4pcs	4pcs	6pcs	6pcs	8pcs
Rubber Suction Cap		Ø250mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Maintenance-free Battery		2x12V/35AH	2x12V/80AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Battery Charger		Smart Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger
Drive motor		24V/750W	24V/1200W	24V/1200W	24V/1200W	24V/1200W	24V/1200W
Lifting Motor		24V/1500W/10L	24V/2000W/10L	24V/2000W/10L	24V/2000W/10L	24V/2000W/10L	24V/2000W/12L
Chassis L*W		2350*620mm	2660*810mm	2660*810mm	2800*810mm	2800*810mm	2800*810mm
Driving Wheel		Ø210x70mm	Ø250x80mm	Ø250x80mm	Ø300x100mm	Ø300x100mm	Ø300x125mm
Packing Size(mm)		23506201700	256010301700	256010301700	258010501700	258010501700	300012502300
N.W/G.W		600/700kg	1100/1150kg	1280/1330kg	1300/1350kg	1400/1450kg	1600/1650kg
Loading Qty(1x20/40GP)		10/20SETS	6/12SETS	6/12SETS	6/12SETS	6/12SETS	6/12SETS

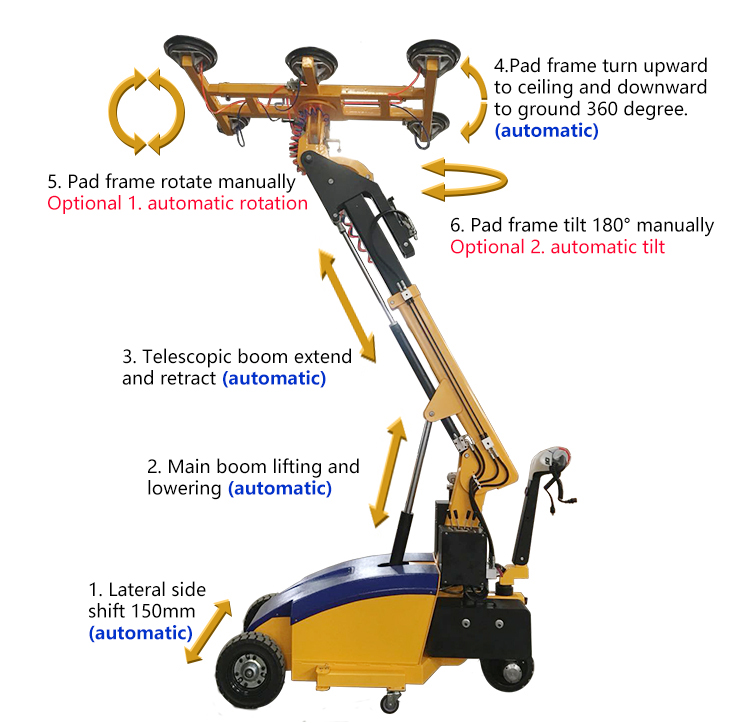

Movement	Automatic (4 kinds)	1. Pad frame vertical up/down 180°automatic 2. Boom in/out TELESCOPIC automatic 3. Powered arm up/down automatic 4. Lateral side shift 100mm automatic
	Manual (2kinds)	5. Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) 6. Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°)

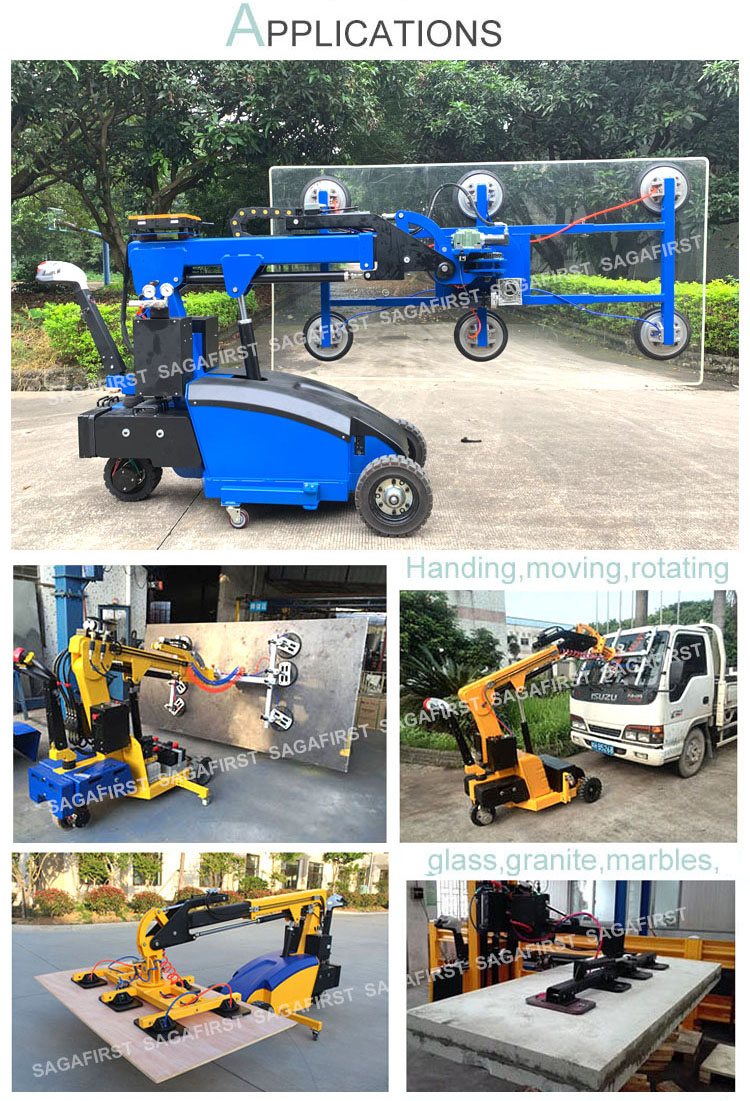

Usages		Mainly used for handling,moving and installing glass,marble,wooden panel etc.
