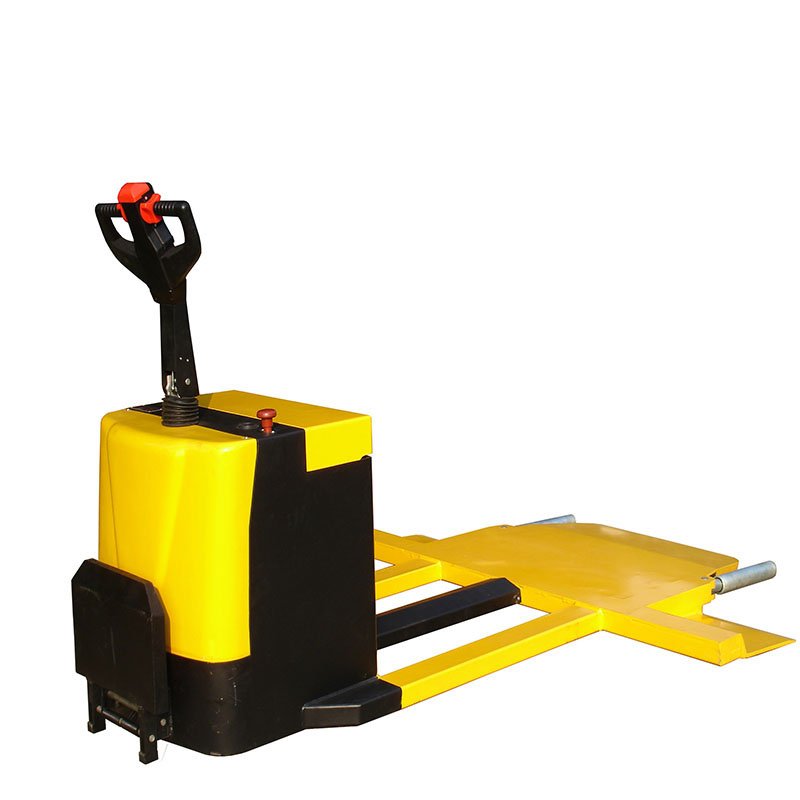

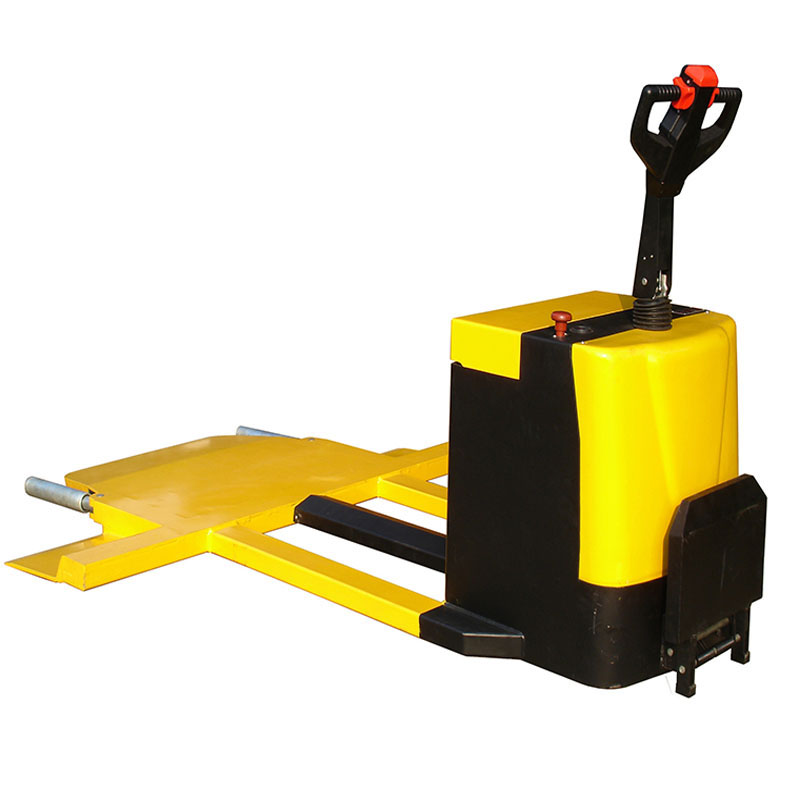

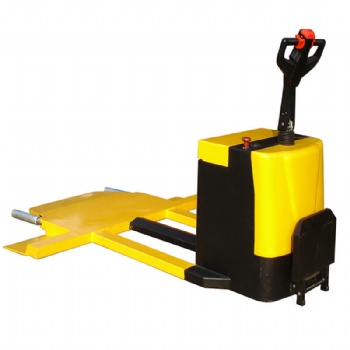

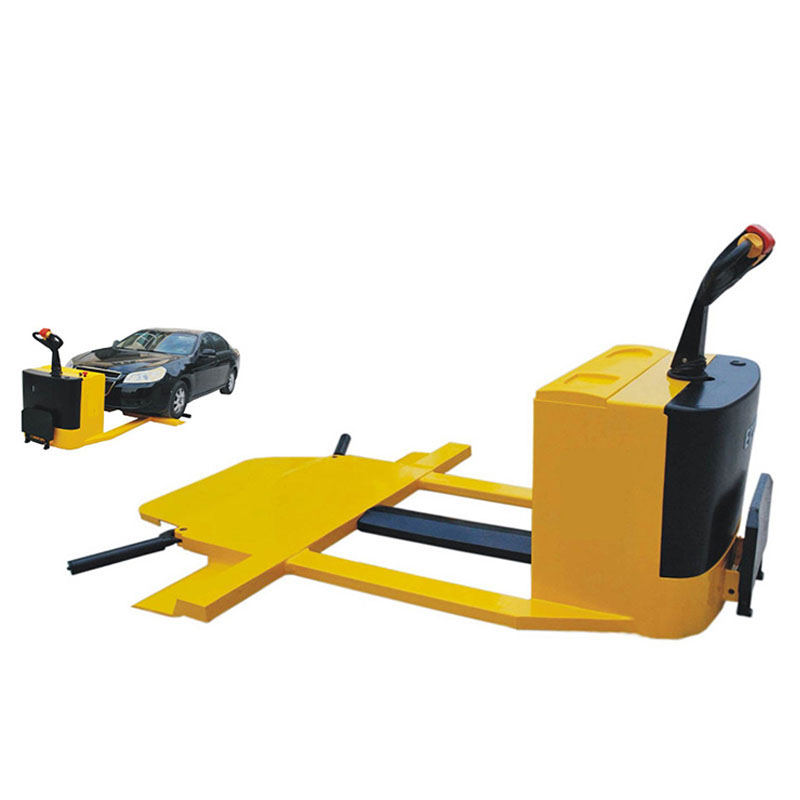

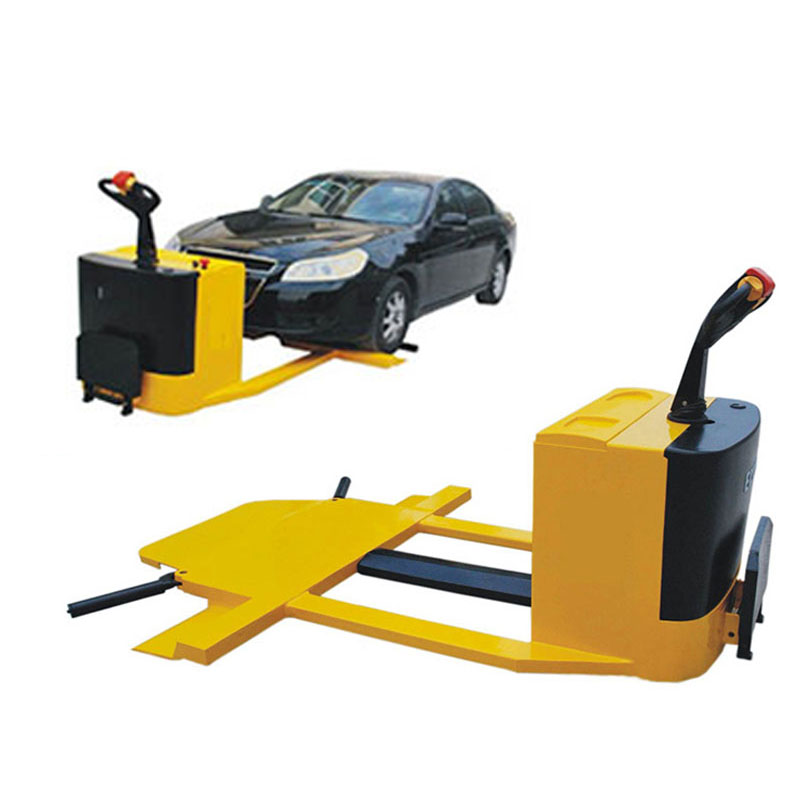

Car Mover

The full electric car mover is specially designed for automobile manufacturers, parking lots, exhibition halls, residential quarters, underground parking lots, residential villas, corporate parking lots, commercial parking lots, and can realize no ignition shift steering. The electronic stepless speed regulation system has stable performance and simple operation. Equipped with power battery for longer, equipped with intelligent charger, no need for special monitoring during the entire charging process

                                                                           New High quality car  mover


Description

The full electric car mover is specially designed for automobile manufacturers, parking lots, exhibition halls, residential quarters, underground parking lots, residential villas, corporate parking lots, commercial parking lots, and can realize no ignition shift steering. The electronic stepless speed regulation system has stable performance and simple operation. Equipped with power battery for longer, equipped with intelligent charger, no need for special monitoring during the entire charging process.


Features & advantages

1. Simple operation,safe and reliable,ultra low noise

2. Transporting your vehicle safely to its intended places.

3. Adopt super good steel materials,not easy to cause deformation,beautiful,security and practical.

4. Heavy duty design with different load:1500kg,2500kg,3500kg and 4500kg to move different vehicles

5. Maintenance free battery,equipped with high efficient charger

6. Durable driving motor and powerful lifting motor

7. Meet international standard climbing ability : 10% unloaded and 5% loaded


Data-Sheet

Model

ECM-2500

ECM-3500

Capacity

2500KG

3500KG

Battery

2x12V/210AH

2x12V/210AH

Charger

24V/30A

24V/30A

Driving Motor

DC24V/1500W

DC24V/1500W

Lifting Motor

24V/2000W

24V/2000W

Materials

Steel panel 6mm

Battery Power Indicator

Yes

Driving Wheel

PU

Driving speed

0~6.5Km/h E-CVT

Lifting height

115mm

Braking type

Electromagnetic braking

Street Request

2000mm can move Forward and Backward

Packing Size

2 wooden carton: 2.3*2*0.3m,and 1*0.8*1.45m

Weight

800/900kg

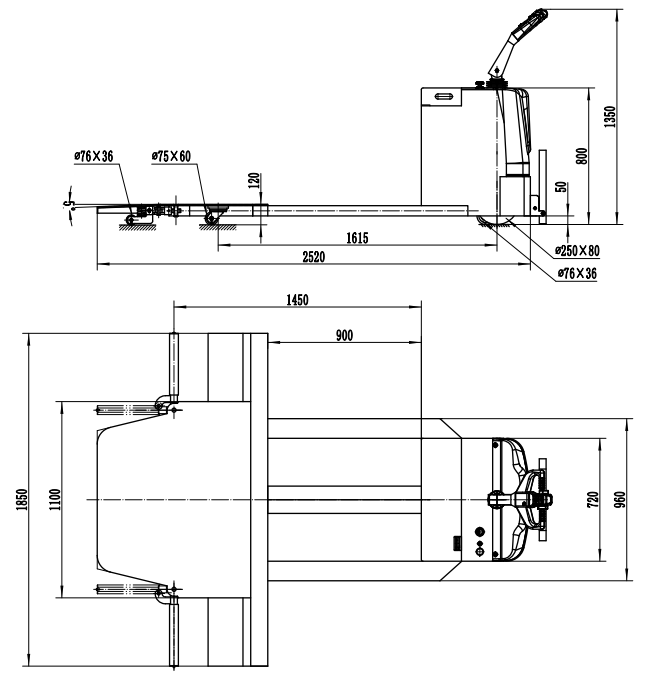

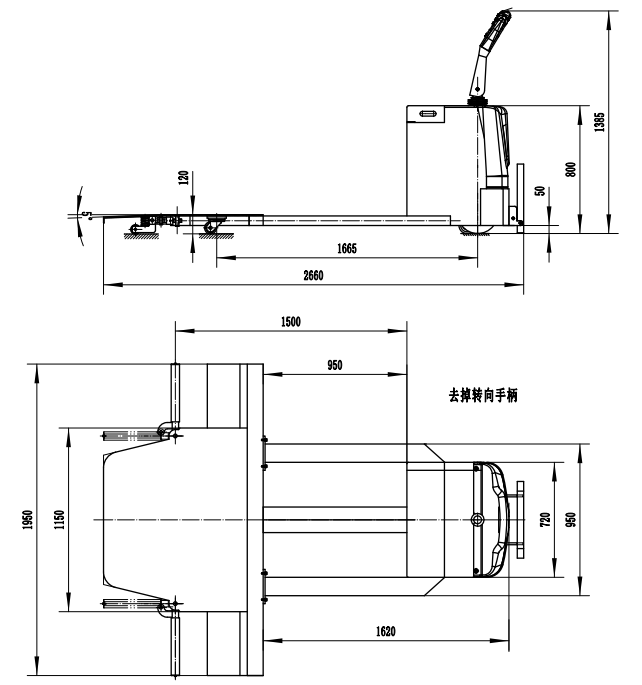

Technical Drawing 2500kg

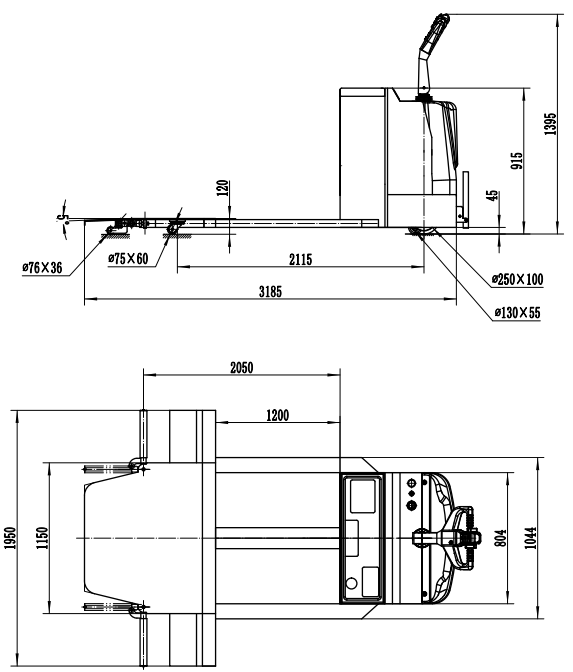

Technical Drawing 3500kg


Technical Drawing 4500kg



Picture Show
